ASME Pharma Industry 0.3t/H Gas Fired Steam Boiler Microcomputer Control

Product Categories

Zhangjiagang Wilford Thermal Co.,Ltd.

Contact Now

Name: ASME Pharma Industry 03tH Gas Fired Steam Boiler Microcomputer Control
Brand: WILFORD
Price: 1 USD

Add to Cart

Vertical Industrial 300kg/h Gas Fired Steam Boilers for Medicine / Food and Beverage Factory

Gas Fired Steam Boilers introduction

Industrial 300kg/h Gas Fired Steam Boilers Boiler water volume is small, with quick start of cold furnace,which can realize temperature and pressure rise during a short period of time.

Automatic microcomputer program control, pressure digital display and pid linear adjustment, flame detection, water shortage protection, smoke temperature detection and other multiple data detection protection, high safety.

Fully skid-mounted ,centralized steam supply, could realize single independent or multiple units centralized control, exempted of installtion and design.

Multiple chain protection,Full combustion, low energy consumption,Safety and energy saving.

The furnace structure has good heat absorption effect, the combustion efficiency is 95%.

Gas Fired Steam Boilers Parameter

Model			LSS0.05-0.7-Y.Q	LSS0.1-0.7-Y.Q	LSS0.125-0.7-Y.Q	LSS0.2-0.7-Y.Q	LSS0.25-0.7-Y.Q	LSS0.3-0.7-Y.Q	LSS0.5-0.7-Y.Q
Project		Unit	LSS0.05-0.7-Y.Q	LSS0.1-0.7-Y.Q	LSS0.125-0.7-Y.Q	LSS0.2-0.7-Y.Q	LSS0.25-0.7-Y.Q	LSS0.3-0.7-Y.Q	LSS0.5-0.7-Y.Q
Rated evaporation		Kg/h	50	100	125	200	250	300	500
Rated working pressure		MPa	0.7	0.7	0.7	0.7	0.7	0.7	0.7
Staturated steam temperature		℃	170	170	170	170	170	170	170
Fuel consumption	Light diesel oil	kg/h	3.5	6.8	8.5	14	16	20	33
	Natural gas	Nm³/h	3.5	7	8.75	15	19	22	36.5
	LPG	Nm³/h	1.5	3	3.8	6	7.5	9	14.5
	City gas	Nm³/h	8.5	18	22.5	34	43	52	88
Water capacity		L	29	49.3	49.6	49.5	49.5	49.5	49.6
a Main steam valve diameter		DN	15	25	25	32	32	32	50
b Safety valve diameter		DN	20	20	20	25	25	25	40
c Inlet diamater		DN	15	15	15	15	15	15	15
d Blowoff Valve diameter		DN	20	20	20	25	25	25	25
Chimney diameter		DN	80	125	125	150	150	150	250
Overall size	L	mm	820	880	900	1400	1500	1500	1800
	W	mm	890	1100	1150	1000	1100	1200	1300
	H	mm	1600	1800	1900	1000	2200	2200	2350
	φDiameter	mm	600	650	650
Weight		kg	180	220	240	850	1150	1200	1680

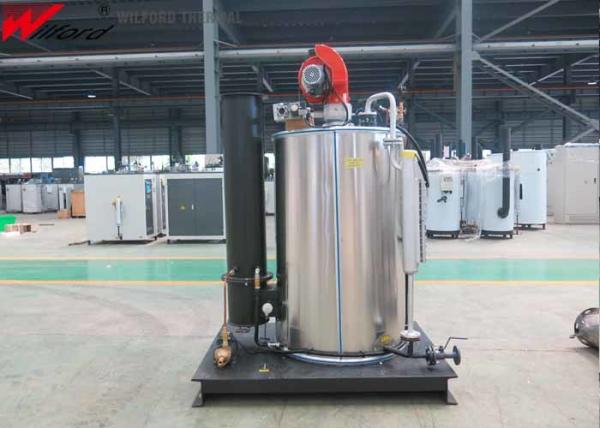

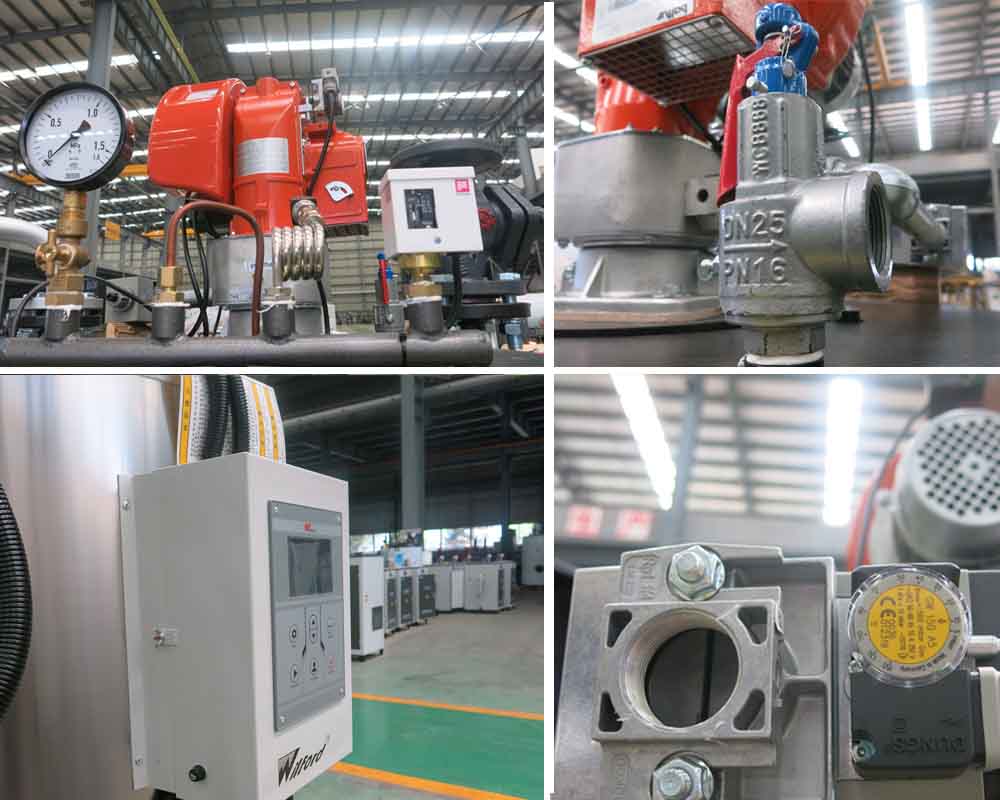

Gas Fired Steam Boilers Picture

Gas Fired Steam Boilers Detail Drawing

Gas Fired Steam Boilers Application

Industrial steam boiler widely used in hospitals, schools, textile mills, garment factories, clothing supermarkets, garment factories, dry cleaners, restaurants.

Hotels, restaurants, hotels, canteens, restaurants, food factories, beverage factories, soy products factories, canneries, wineries.

Pharmaceutical factory, packaging factory, building material factory, paint factory, beauty salon, bath center, sauna, steam room, baby swimming pool, etc.
