Full Automatic 100kg/H LPG Stainless Steel Steam Boiler For Laundry Industry

    Buy cheap Full Automatic 100kg/H LPG Stainless Steel Steam Boiler For Laundry Industry from wholesalers

    Buy cheap Full Automatic 100kg/H LPG Stainless Steel Steam Boiler For Laundry Industry from wholesalers
    • Buy cheap Full Automatic 100kg/H LPG Stainless Steel Steam Boiler For Laundry Industry from wholesalers
    • Buy cheap Full Automatic 100kg/H LPG Stainless Steel Steam Boiler For Laundry Industry from wholesalers
    • Buy cheap Full Automatic 100kg/H LPG Stainless Steel Steam Boiler For Laundry Industry from wholesalers

    Full Automatic 100kg/H LPG Stainless Steel Steam Boiler For Laundry Industry

    Ask Lasest Price
    Brand Name : WILFORD
    Model Number : LSS
    Certification : ASME,ISO9001,CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 stand/stands per Month
    Delivery Time : 15-20 working days
    • Product Details
    • Company Profile

    Full Automatic 100kg/H LPG Stainless Steel Steam Boiler For Laundry Industry


    100kg / h Small Natural Gas/ LPG Fired Steam Generator For Laundry And Food Industry


    Gas Fired Steam Boilers Product introduction


    • High efficiency structure design; Advanced automatic control function; Safety and science multiple protection design; High quality and fast steam.

    • Vertical structure, the flame extends from top to bottom, and the long flame burns fully.

    • Using full premixed combustion technology, the combustion is more complete, the thermal efficiency is high, and the energy consumption is low.

    • Fully automatic control, with multi-chain protection such as water level and steam pressure.

    • For Laundry And Food Industry 50-125Kg/h Vertical Gas/Oil Industrial Steam Boiler, Steam Generator


    Gas Fired Steam Boilers Parameter


    ModelLSS0.05-0.7-Y.QLSS0.1-0.7-Y.QLSS0.125-0.7-Y.Q
    ProjectUnit
    Rated evaporationKg/h50100125
    Rated working pressureMPa0.70.70.7
    Staturated steam temperature170170170
    Fuel consumptionLight diesel oilkg/h3.56.88.5
    Natural gasNm³/h3.578.75
    LPGNm³/h1.533.8
    City gasNm³/h8.51822.5
    Water capacityL2949.349.6
    a Main steam valve diameterDN152525
    b Safety valve diameterDN202020
    c Inlet diamaterDN151515
    d Blowoff Valve diameterDN202020
    Chimney diameterDN80125125
    Overall sizeLmm820880900
    Wmm89011001150
    Hmm160018001900
    φ Diametermm600650650
    Weightkg180220240

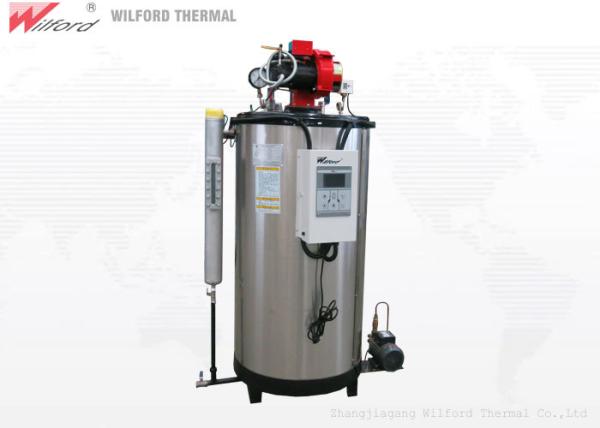

    Gas Fired Steam Boilers Product Detail picture



    Gas Fired Steam Boilers Application


    • Products are widely used in garment factories, dry cleaners, washing factories to iron and dry, steam rice, boil water, hospital,

    • school, chemical plant disinfection, laboratory, pharmaceutical factory, food factory drying and disinfection heating, cooking soy

    • milk, heating food;Supporting fermentation tank, reaction kettle, reaction pot sandwich pot, steamed rice cabinet.

    About Wilford


    • Wilford company is specialized in manufacturing and selling steam boiler for many years .

    • Our worker have experience to produce machines professional and skilled,so the machine workes well with high quality.

    • All parts of our machines are famous brand in China or in international,so it make sure our machine have high quality with long lifetime.

    • Our company provides 24 hours online services and technical supports for customers.
