    Small Footprint LPG Steam Generator Full Automatic Control High Safety

    Ask Lasest Price
    Brand Name : WILFORD
    Model Number : LSS
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 25 stand/stands per Month
    Delivery Time : 15-20 working days
    • Product Details
    • Company Profile

    Small Footprint LPG Steam Generator Full Automatic Control High Safety


    Full Automatic Control LPG / Natural Gas Fired Steam Generator For Sale


    Product introduction


    1 . The boiler can be started quickly, or it can be stopped quickly and has high safety.


    2 . Its thermal efficiency and combustion efficiency are very high and its use value is high.


    3 . It adopts advanced energy-saving device and low-nitrogen boiler combustion technology, which is energy-saving and environmentally friendly.


    4 . Can be automated, safe and efficient.


    5 . With multiple data detection protection devices to enhance safety functions.


    6 . Compact structure, small footprint, can introduce multiple installation and cluster control systems.



    Parameter


    ModelLSS0.05-0.7-Y.QLSS0.1-0.7-Y.QLSS0.125-0.7-Y.Q
    ProjectUnit
    Rated evaporationKg/h50100125
    Rated working pressureMPa0.70.70.7
    Staturated steam temperature170170170
    Fuel consumptionLight diesel oilkg/h3.56.88.5
    Natural gasNm³/h3.578.75
    LPGNm³/h1.533.8
    City gasNm³/h8.51822.5
    Water capacityL2949.349.6
    a Main steam valve diameterDN152525
    b Safety valve diameterDN202020
    c Inlet diamaterDN151515
    d Blowoff Valve diameterDN202020
    Chimney diameterDN80125125
    Overall sizeLmm820880900
    Wmm89011001150
    Hmm160018001900
    φ Diametermm600650650
    Weightkg180220240

    Advantage


    • Normal water level water volume 29L

    • Can be exempted from local supervision and inspection

    • The combustion intensity is relatively high

    • Continuous supply of heat

    • Intelligent, safe and efficient

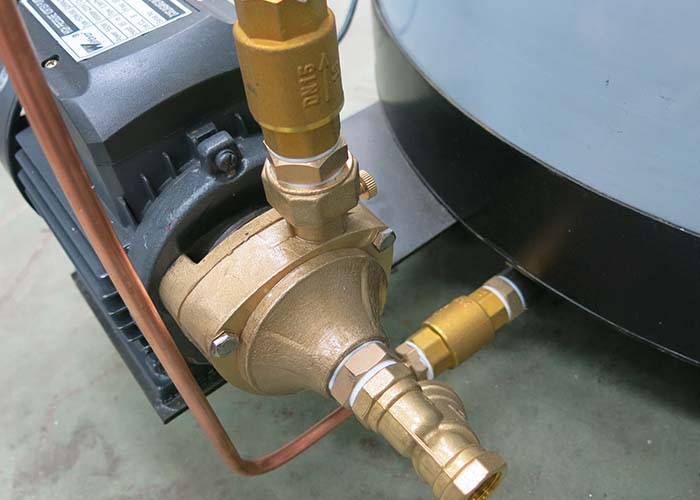

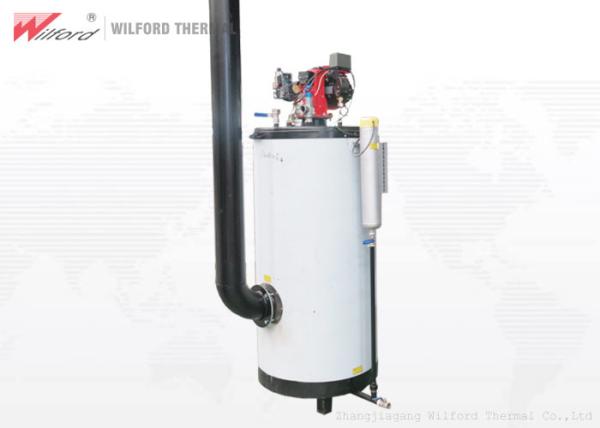

    Product picture

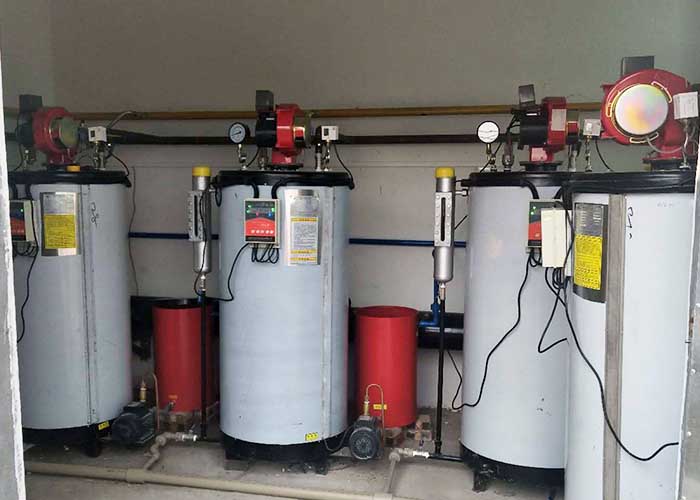

    Project case diagram
