250-1000kg / H Skid - Mounted Gas Fired Steam Generator Water Tube Structure

    Buy cheap 250-1000kg / H Skid - Mounted Gas Fired Steam Generator Water Tube Structure from wholesalers

    Buy cheap 250-1000kg / H Skid - Mounted Gas Fired Steam Generator Water Tube Structure from wholesalers
    • Buy cheap 250-1000kg / H Skid - Mounted Gas Fired Steam Generator Water Tube Structure from wholesalers
    • Buy cheap 250-1000kg / H Skid - Mounted Gas Fired Steam Generator Water Tube Structure from wholesalers
    • Buy cheap 250-1000kg / H Skid - Mounted Gas Fired Steam Generator Water Tube Structure from wholesalers

    250-1000kg / H Skid - Mounted Gas Fired Steam Generator Water Tube Structure

    Ask Lasest Price
    Brand Name : WILFORD
    Model Number : WFQ
    Certification : ASME,CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10 stand/stands per Month
    Delivery Time : 15-20 working days
    • Product Details
    • Company Profile

    250-1000kg / H Skid - Mounted Gas Fired Steam Generator Water Tube Structure


    New Condition Skid - mounted Good Quality Gas Fired Steam Generator for sale


    Product introduction


    • In order to meet customers' demand for high energy efficiency of steam and heat source, we designed a skid-mounted oil (gas) fired steam generator.

    • Modular design, convenient for user access to the pipeline, save room space.

    • Vertical structure, bright color, compact structure and easy installation.

    • Special specification boilers with other evaporation and working pressure can be provided according to customer requirements.


    Parameter


    WFQSkid-mounted Oil(gas) Fired Steam Boiler
    ModelWFQ0.25-0.7-Y.QWFQ0.5-0.7-Y.QWFQ0.75-0.7-Y.QWFQ1.0-0.7-Y.Q
    ProjectUnit
    Rated evaporationKg/h2505007501000
    Rated working pressureMPa0.70.70.70.7
    Staturated steam temperature170171172173
    Fuel consumptionLight diesel oilkg/h16324864
    Natural gasNm³/h19385776
    LPGNm³/h7.615.222.830.4
    City gasNm³/h4080120160
    Water capacityL49.549.5*249.5*349.5*4
    a Main steam valve diameterDN32405050
    b Safety valve diameterDN25252525
    c Inlet diamaterDN15151515
    d Blowoff Valve diameterDN25252525
    e Chimney diameterDN150150150150
    Overall sizeLmm1500150015001500
    Wmm11001100*21100*31100*4
    Hmm2200220022002200


    Feature


    • Modular design for quick and easy operation.

    • Small footprint and easy installation.

    • Flexible working style and saving manpower.

    • Energy saving and environmental protection.

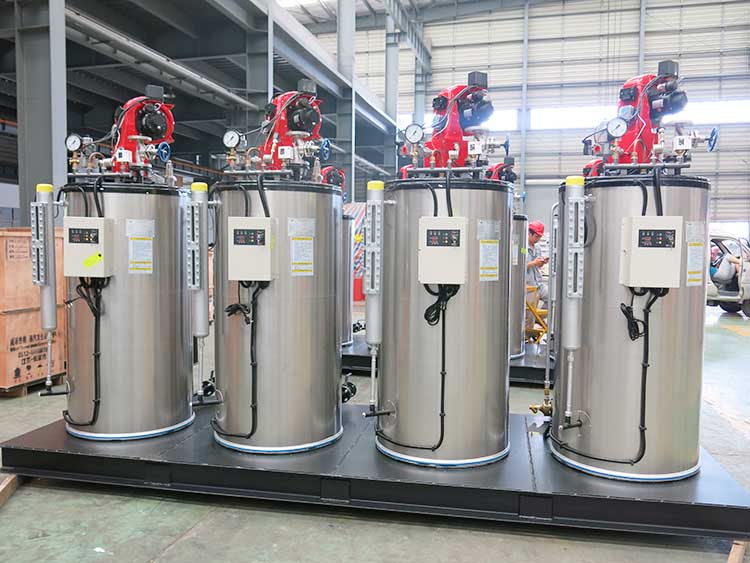

    Product picture

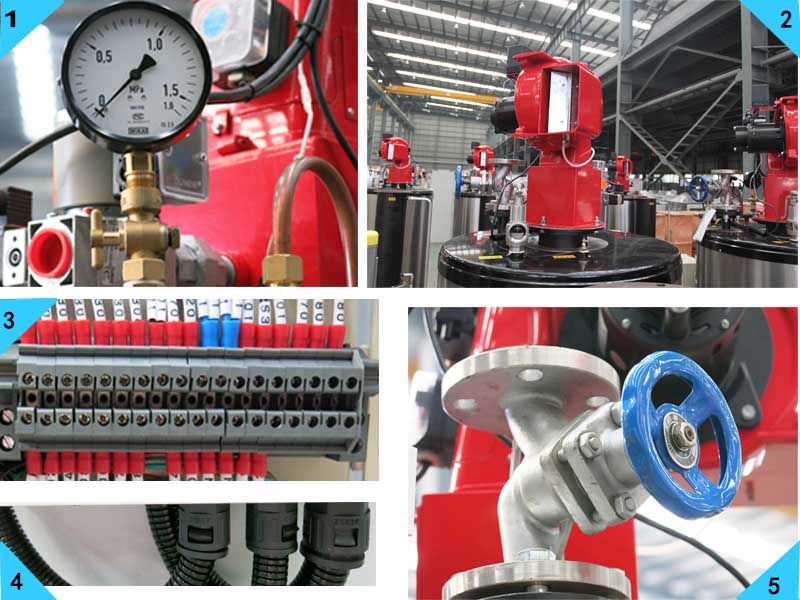

    Product detail drawing



    FAQ


    Q : Are you a factory or a trading company?


    A : We are a 20-year-old industrial boiler factory , specializing in gas oil diesel electric fired boilers. Now we are one of leading industrial boiler manufacturers in China.


    Q : What is the Warranty for the boilers?


    A : Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new parts for free.


    Q : How long should we wait for delivery?


    A : Usually it will take about 35-45 days for pressured boilers, If you need to change the voltage or pressure, it need more time .


    Q What about your payment term?


    A : Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.
