Name: Milk Pasteurization Skid Mounted Boiler Small Steam Generator High Security
Brand: WILFORD
Price: 1 USD

Add to Cart

Small Capacity Skid - Mounted Steam Generator For Milk Pasteurization

Product introduction

Reduced the amount of work required for on-site installation due to the way the boiler and fittings are installed together.

All production and assembly are done in the factory before the goods are delivered.

It can not only achieve centralized and unified control, but also achieve single control.

Parameter

Model			LSS0.05-0.7-Y.Q	LSS0.1-0.7-Y.Q	LSS0.125-0.7-Y.Q
Project		Unit	LSS0.05-0.7-Y.Q	LSS0.1-0.7-Y.Q	LSS0.125-0.7-Y.Q
Rated evaporation		Kg/h	50	100	125
Rated working pressure		MPa	0.7	0.7	0.7
Staturated steam temperature		℃	170	170	170
Fuel consumption	Light diesel oil	kg/h	3.5	6.8	8.5
	Natural gas	Nm³/h	3.5	7	8.75
	LPG	Nm³/h	1.5	3	3.8
	City gas	Nm³/h	8.5	18	22.5
Water capacity		L	29	49.3	49.6
a Main steam valve diameter		DN	15	25	25
b Safety valve diameter		DN	20	20	20
c Inlet diamater		DN	15	15	15
d Blowoff Valve diameter		DN	20	20	20
Chimney diameter		DN	80	125	125
Overall size	L	mm	820	880	900
	W	mm	890	1100	1150
	H	mm	1600	1800	1900
	φ Diameter	mm	600	650	650
Weight		kg	180	220	240

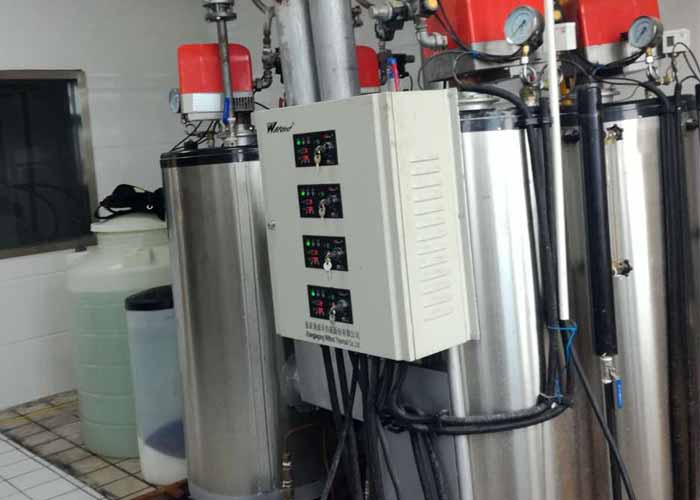

Project case diagram
