Energy Saving Low Pressure Steam Boiler Skid Mounted For Foaming Machine

Product Categories

Zhangjiagang Wilford Thermal Co.,Ltd.

Contact Now

Name: Energy Saving Low Pressure Steam Boiler Skid Mounted For Foaming Machine
Brand: WILFORD
Price: 1 USD

Add to Cart

Low Pressure Fully Skid - Mounted Steam Boiler For Foaming Machine

Product introduction

Parameter

Model			LWS0.05-0.7-Y.Q	LWS0.1-0.7-Y.Q	LWS0.15-0.7-Y.Q	LWS0.2-0.7-Y.Q	LWS0.3-0.7-Y.Q
Project		Unit	LWS0.05-0.7-Y.Q	LWS0.1-0.7-Y.Q	LWS0.15-0.7-Y.Q	LWS0.2-0.7-Y.Q	LWS0.3-0.7-Y.Q
Rated evaporation		t/h	0.05	0.1	0.15	0.2	0.3
Rated working pressure		MPa	0.7	0.7	0.7	0.7	0.7
Staturated steam temperature		℃	170	170	170	170	170
Fuel consumption	Light diesel oil	kg/h	3.5	7	10.5	14	21
	Natural gas	Nm³/h	4	8	12	16	24
	LPG	Nm³/h	1.5	3	4.5	6	9
	City gas	Nm³/h	8.5	17	25.5	34	51
Dimension
a Main steam valve diameter		DN	15	25	25	32	32
b Safety valve diameter		DN	20	25	25	25	25
c Inlet diamater		DN	15	20	20	20	20
d Blowoff Valve diameter		DN	20	20	25	25	25
e Chimney diameter		DN	100	120	150	150	200
Overall size	L	mm	870	1020	1150	1260	1270
	W	mm	930	1080	1260	1400	1570
	W1	mm	640	760	890	970	1040
	H	mm	1660	1750	1840	2160	2400
	H1	mm	1460	1480	1520	1840	2090
	φ Diameter	mm	630	750	880	960	1000
Weight		kg	330	470	610	780	850

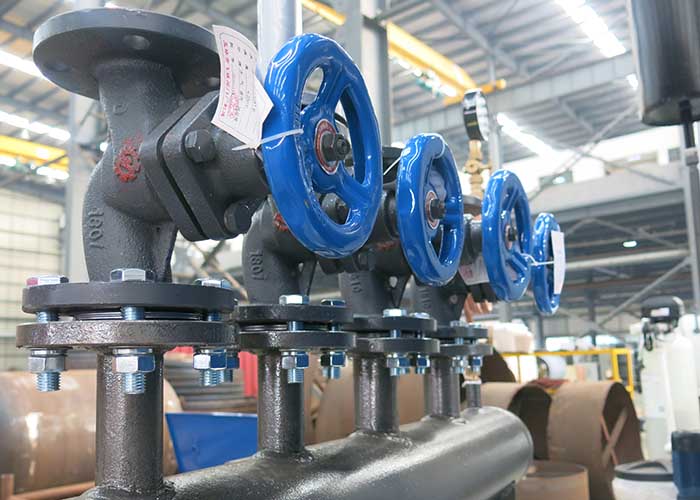

Product picture
