High Performance Low pressure Horizontal Industrial eletric Steam Boiler

Product introduction

The steam boiler works very efficiently. It not only has a large steam space, but also produces high quality steam.

In order to extend the service life of the boiler, we choose to separate the furnace body and the control cabinet.

Its electric heating tube can be used for about 20,000 hours, the quality is very good, it is not easy to damage, and the maintenance cost is reduced.

The electrical components used in it are certified to be very safe and reliable.

PLC control system, built-in PID design pressure control mode, to ensure efficient and safe operation of the boiler.

Parameter

Type			WDR0.75	WDR1	WDR1.5	WDR2	WDR3	WDR4
Project		Unit	WDR0.75	WDR1	WDR1.5	WDR2	WDR3	WDR4
Rated evaporation		t/h	0.75	1	1.5	2	3	4
Rated working pressure		MPa	1.0/1.25	1.0/1.25	1.0/1.25	1.0/1.25	1.0/1.25	1.0/1.25
Staturated steam temperature		℃	184/193	184/193	184/193	184/193	184/193	184/193
Input Power		KW	540	720	1080	1440	2160	2880
Input current		A	810	1080	1620	2160	3240	4320
Rated pressure		V	3N AC 50Hz 380V
Power×Group		KW×P	36×15	36×20	36×30	36×40	36×60	36×80
Dimension
a Main steam valve diameter		DN	40	40	65	65	80	100
b Safety valve diameter		DN	2×40	2×40	2×40	2×40	2×40	2×50
c Inlet diamater		DN	25	25	25	25	40	40
d Blowoff Valve diameter		DN	40	40	40	40	40	40
Overall size	L	mm	2800	2950	3450	3500	3950	4100
	L1	mm	2400	2500	3050	2880	3200	3550
	W	mm	1800	1900	2180	2000	2100	2300
	W1	mm	1550	1600	1430	1880	1980	2120
	H	mm	1550	1600	2100	2500	2650	2980
	H1	mm	1300	1350	1850	1900	2100	2200
Electrical control cabinet size	ALength	mm	1200	1200	1500	2200	2000(2)	2200(2)
	BWidth	mm	500	600	600	700	700	700
	CHight	mm	1800	1800	2000	2000	2200	2200
Weight		T	1.6/2.0	1.8/2.2	2.2/2.7	2.8/3.3	3.5/4.1	4.5/5.2

Feature

1 . Split installation

2 . The electric control cabinet is separated from the furnace body

3 . Nearly 99% thermal efficiency

4 . Concentrated beam flange connection

5 . Large steam space

6 . The control function is very complete

7 . Microcomputer control, efficient

Product picture

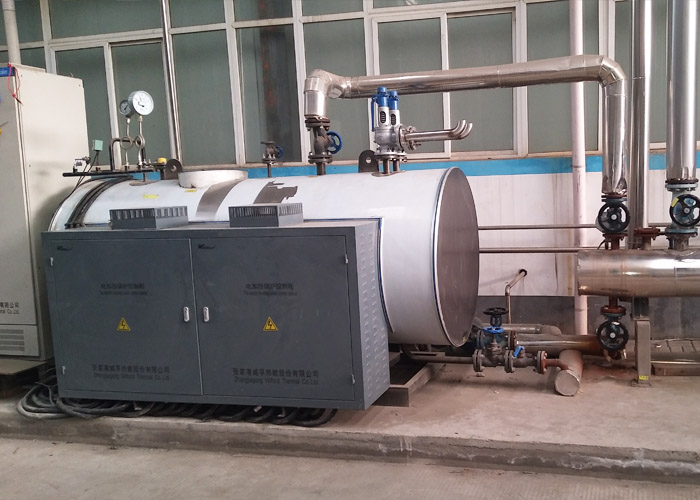

Project case diagram
