Fully Automatic 150kg 300kg 500kg Electric Steam Boiler Price
Product introduction
► Flexible working mode, can be set to manual or automatic mode;
With power switching function, the power can be adjusted according
to the actual steam demand, so that the service time and frequency
of all contactors are the same, and the service life of the
equipment can be improved.
►Electric steam boiler, In operation,there are multiple protection functions ,such as phase
sequence of power grid, overpressure, ultra-high liquid level,
water shortage, overcurrent, leakage, short circuit of sensor,
circuit break, timeout of water replenishing, and overtemperature
of electric control box. It is safe and reliable.
► Based on PLC and touch screen control, man-machine dialogue,
one-click start, through PLC data communication, can achieve remote
monitoring.
► Vertical structure electric steam boiler compact and beautiful,
elegant shape, bright color, small floor area for easy
installation, the modular design is for multiple parallel use.
► Each group of electric heating element is connected with
concentrated bundle flange, independent setting, high mechanical
strength, safe and reliable. Easy to replace and long service life.
Parameter
| LDR Vertical Electric Heating Steam Boiler |
| Type | LDR0.15 | LDR0.2 | LDR0.3 | LDR0.5 |
| Project | Unit |
| Rated evaporation | t/h | 0.15 | 0.2 | 0.3 | 0.5 |
| Rated working pressure | MPa | 0.7/1.0 | 0.7/1.0 | 0.7/1.0 | 0.8/1.0 |
| Staturated steam temperature | ℃ | 170/184 | 170/184 | 170/184 | 175/184 |
| Input Power | KW | 108 | 144 | 216 | 360 |
| Input current | A | 162 | 216 | 324 | 540 |
| Rated pressure | V | 3N AC 50Hz 380V |
| Power×Group | KW×P | 18×6 | 18×8/24×6 | 27×8 | 36×10 |
| a Main steam valve diameter | DN | 25 | 25 | 32 | 50 |
| b Safety valve diameter | DN | 25 | 25 | 25 | 40 |
| c Inlet diamater | DN | 15 | 15 | 25 | 25 |
| d Blowoff Valve diameter | DN | 25 | 25 | 40 | 40 |
| Overall size | L | mm | 1100 | 1150 | 1300 | 1450 |
| W | mm | 950 | 950 | 1100 | 1350 |
| H | mm | 1950 | 2000 | 2100 | 2300 |
For boiler steam capacity up to or more than 300kg/hr ,the
structure is seperated --boiler with seperate electrical control
cabinet. | A | mm | - | - | - | 1200 |
| B | mm | - | - | - | 600 |
| C | mm | - | - | - | 2000 |
| Weight | kg | 350 | 450 | 680 | 980 |
| We can provide customized products for specific power supply in the
world. |
Product Advantage
♦ After precision calculation&design, boiler could quickly and
efficiently reach work pressure.
♦ Using low heat load surface heating elements-- not easily melted or softened.
♦ Each component with water pressure and withstand voltage test.
♦ Boiler could immediately work after connecting to power and water
supply.
♦ Nearly 100% thermal efficiency--quiet, clean,more in line with environmental requirements.
Product detail drawing

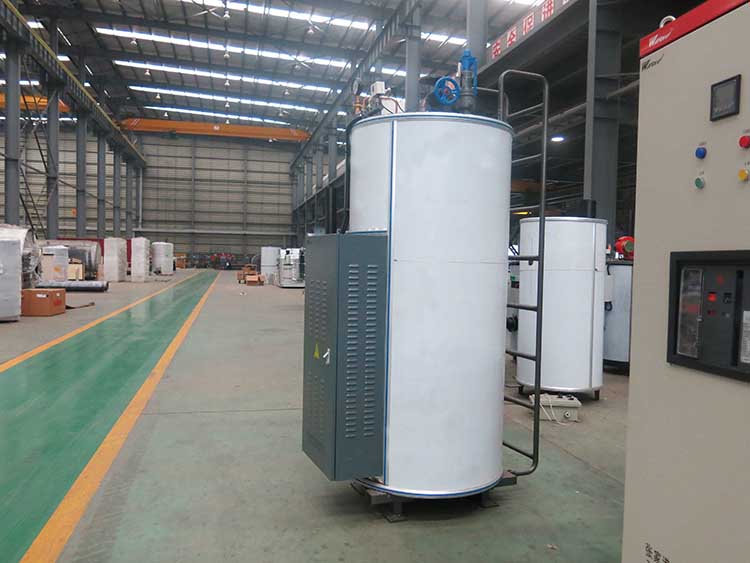

Product picture
Application
• Pharmaceutical factory, packaging factory, building material
factory, paint factory, beauty salon, bath center, sauna, steam
room, baby
swimming pool, etc.Hotels, restaurants, hotels, canteens, restaurants, food factories,
beverage factories, soy products factories, canneries,
wineries.
Our Service
• Pre-sale,sale.after sales service process
• 7*24 hour uninterrupted service
• Professional engineer service team is always ready
FAQ
Q : Are you a factory or a trading company?
A : We are a 20 years old industrial boiler factory, specializing
in gas oil diesel electric fired boilers.
Q : What is the Warranty for the boilers?
A : Our steam boiler warranty is one year, During the warranty
period, any parts damaged, you can get a new parts for free.
Q : How long should we wait for delivery?
A : Usually it will take about 35-45 days for pressured boilers, If
you need to change the voltage or pressure, it need more time.
Q : What about your payment term?
A : Usually it would be 30% deposit payment, 70% balance before
delivery. We accept T/T, L/C and other payment way.
