Factory Good Quality 9-90KW Mini Electric Steam Generator

Ask Lasest Price
Brand Name :	WILFORD
Model Number :	LDR electrical steam boiler
Certification :	CE,ISO
Supply Ability :	50 stand/stands per Month
Price :	Negotiable
Payment Terms :	L/C, T/T
Delivery Time :	15-20 working days

Add to Cart

Product Details
Company Profile

Factory Good Quality 9-90KW Mini Electric Steam Generator

Factory good quality mini electric electric steam generator

Electric Steam Boiler Product introduction

Each group of heating tubes is equipped with a separate contactor. When a group of heating tubes fails, it does not affect the normal use of the steam generator.

The heating element is flanged and the heating tube is made of 316L high quality stainless steel.

For the use of low-conductivity water in the medical industry, the design of the boiler water level float ball type is specially designed.

Integrated control panel, running at a glance, to avoid misuse.

The heating element is connected by concentrated beam type flange, which has simple structure and convenient replacement.

Electric Steam Boiler Parameter

National Inspection-free Electrical Steam Generator
Model			LDR0.012-0.7	LDR0.016-0.7	LDR0.025-0.7	LDR0.035-0.7	LDR0.05-0.7	LDR0.06-0.7	LDR0.08-0.7	LDR0.1-0.7	LDR0.125-0.7
Project		UNIT
Rated evaporation		Kg/h	12	16	25	35	50	60	80	100	125
Rated working pressure		MPa	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7
Saturated steam temperature		℃	170	170	170	170	170	170	170	170	170
Input power		KW	9	12	18	27	36	40	54	72	90
Input current		A	14	18	27	41	54	60	81	108	135
Rated voltage		V	3N AC 50Hz 380V
aMain steam valve diameter		DN	15	15	15	15	15	15	15	25	25
bSafety valve diameter		DN	15	15	15	15	15	15	15	25	25
cInlet diamater		DN	15	15	15	15	15	15	15	15	15
dBlowoff valve diameter		DN	25	25	25	25	25	25	25	20	20
Overall size	L	mm	540	540	540	540	650	650	650	800	800
	W	mm	650	650	650	650	660	660	660	800	800
	H	mm	980	980	1100	1100	1380	1380	1380	1580	1580
Weight		kg	90	95	105	110	130	130	135	195	195
According to customer order requirements, the company can provide customized products for specific power supply in the world.

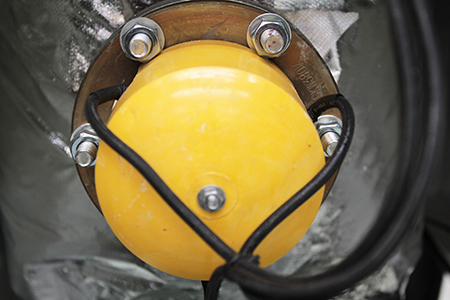

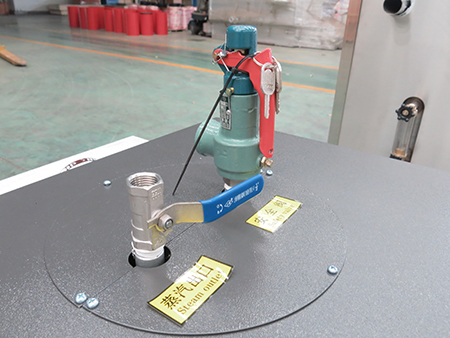

Electric Steam Boiler Product Detail

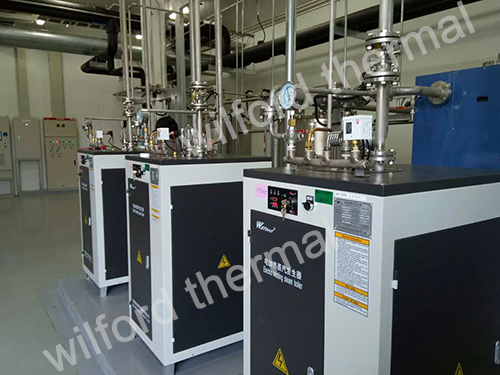

Electric Steam Boiler Project Case

Project case diagram

Electric Steam Boiler Shipping

FAQ

Q : Are you a factory or a trading company?
A : We are a 20 years old industrial boiler factory, specializing in gas oil diesel electric fired boilers.

Q : What is the Warranty for the boilers?

A : Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new parts for free.

Q : How long should we wait for delivery?

A : Usually it will take about 35-45 days for pressured boilers, If you need to change the voltage or pressure, it need more time.
Q : What about your payment term?
A : Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.
