Large Electric Steam Boiler For The Food Industry

Product introduction

The product adopts independent body and electric control cabinet to extend the service life, easy to install and maintain.

The thermal efficiency can reach 99%, energy saving and emission reduction, and meet the requirements of environmental protection.

The normal service life of the electric heating pipe is about 20,000 hours, and the quality is absolutely guaranteed.

All electrical components are first-line brand and have CE or CCC or UL certification mark.

Each set of heating components included in the boiler is equipped with a cluster flange connection, which is extremely convenient to replace.

Simple operation, adopt PLC control system, complete control function and high degree of automation.

Parameter

Type			WDR0.75	WDR1	WDR1.5	WDR2	WDR3	WDR4
Project		Unit	WDR0.75	WDR1	WDR1.5	WDR2	WDR3	WDR4
Rated evaporation		t/h	0.75	1	1.5	2	3	4
Rated working pressure		MPa	1.0/1.25	1.0/1.25	1.0/1.25	1.0/1.25	1.0/1.25	1.0/1.25
Staturated steam temperature		℃	184/193	184/193	184/193	184/193	184/193	184/193
Input Power		KW	540	720	1080	1440	2160	2880
Input current		A	810	1080	1620	2160	3240	4320
Rated pressure		V	3N AC 50Hz 380V
Power×Group		KW×P	36×15	36×20	36×30	36×40	36×60	36×80
Dimension
a Main steam valve diameter		DN	40	40	65	65	80	100
b Safety valve diameter		DN	2×40	2×40	2×40	2×40	2×40	2×50
c Inlet diamater		DN	25	25	25	25	40	40
d Blowoff Valve diameter		DN	40	40	40	40	40	40
Overall size	L	mm	2800	2950	3450	3500	3950	4100
	L1	mm	2400	2500	3050	2880	3200	3550
	W	mm	1800	1900	2180	2000	2100	2300
	W1	mm	1550	1600	1430	1880	1980	2120
	H	mm	1550	1600	2100	2500	2650	2980
	H1	mm	1300	1350	1850	1900	2100	2200
Electrical control cabinet size	ALength	mm	1200	1200	1500	2200	2000(2)	2200(2)
	BWidth	mm	500	600	600	700	700	700
	CHight	mm	1800	1800	2000	2000	2200	2200
Weight		T	1.6/2.0	1.8/2.2	2.2/2.7	2.8/3.3	3.5/4.1	4.5/5.2

Advantage

1 . Horizontal structure

2 . Furnace electric control cabinet separation method

3 . Domestic and international high-quality electric heating tube

4 . PLC control system

5 . Fully automatic control

6 . Run quietly and clean

Product picture

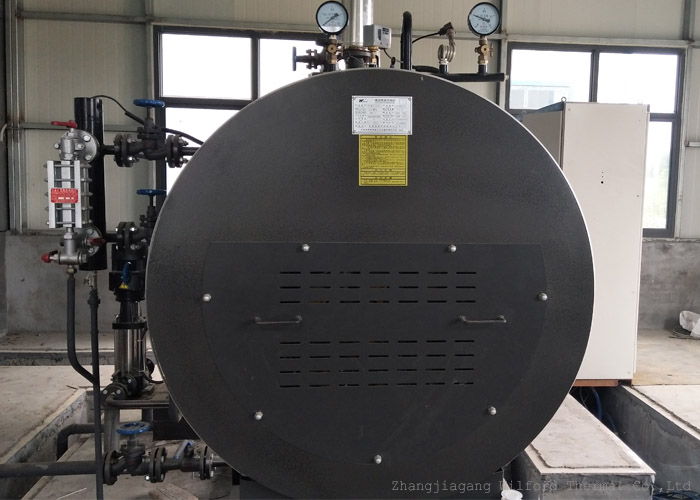

Project case diagram
