Name: 4 TH Electric Heating Steam Boiler High Power Small Heat Loss For Food Processing
Brand: WILFORD
Price: 1 USD

Add to Cart

4T / H Electric Heating Steam Boiler For Food processing

Product introduction

All electrical components with CE and UL marks --ensure safety and long life service.

Each heating element use a concentrated beam flange connection,independently arrangement, simple structure, high mechanical strength, safe, reliable, convenient replacement, long service life.

Boiler and control cabinet is seperated ,so control components could away from heat source .One set or many sets could together for multi-usage.

PLC microcomputer programmable control and display screen. Automatic water outlet temperature control settings. Screen displays equipment operating parameters and fault alarm.

Parameter

Type			WDR0.75	WDR1	WDR1.5	WDR2	WDR3	WDR4
Project		Unit	WDR0.75	WDR1	WDR1.5	WDR2	WDR3	WDR4
Rated evaporation		t/h	0.75	1	1.5	2	3	4
Rated working pressure		MPa	1.0/1.25	1.0/1.25	1.0/1.25	1.0/1.25	1.0/1.25	1.0/1.25
Staturated steam temperature		℃	184/193	184/193	184/193	184/193	184/193	184/193
Input Power		KW	540	720	1080	1440	2160	2880
Input current		A	810	1080	1620	2160	3240	4320
Rated pressure		V	3N AC 50Hz 380V
Power×Group		KW×P	36×15	36×20	36×30	36×40	36×60	36×80
Dimension
a Main steam valve diameter		DN	40	40	65	65	80	100
b Safety valve diameter		DN	2×40	2×40	2×40	2×40	2×40	2×50
c Inlet diamater		DN	25	25	25	25	40	40
d Blowoff Valve diameter		DN	40	40	40	40	40	40
Overall size	L	mm	2800	2950	3450	3500	3950	4100
	L1	mm	2400	2500	3050	2880	3200	3550
	W	mm	1800	1900	2180	2000	2100	2300
	W1	mm	1550	1600	1430	1880	1980	2120
	H	mm	1550	1600	2100	2500	2650	2980
	H1	mm	1300	1350	1850	1900	2100	2200
Electrical control cabinet size	ALength	mm	1200	1200	1500	2200	2000(2)	2200(2)
	BWidth	mm	500	600	600	700	700	700
	CHight	mm	1800	1800	2000	2000	2200	2200
Weight		T	1.6/2.0	1.8/2.2	2.2/2.7	2.8/3.3	3.5/4.1	4.5/5.2

Feature

1 . Horizontal high power steam boiler

2 . Electrical components have CE and UL certification marks

3 . Use concentrated beam flange connection

4 . The electronic control components are away from the heat source

5 . Reasonable structure, safe and reliable

6 . PLC microcomputer control

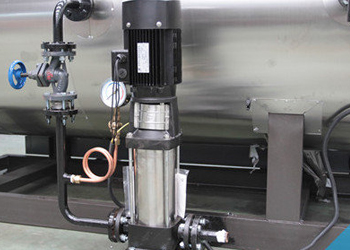

Product picture

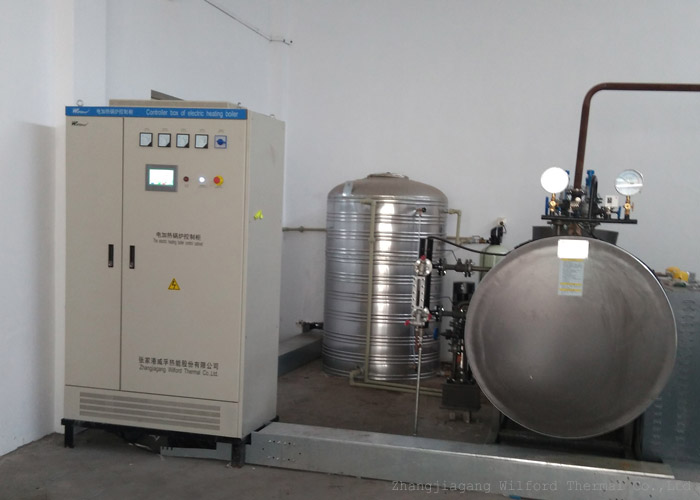

Project case diagram
