Textile Machine Horizontal Fire Tube 20T/H Gas Oil Boiler

1-20T/H Steam Capacity Oil / Gas Fired Steam Boiler

Gas/Oil Fried Steam Boiler introduction

Oil/gas fired steam boilers,Pre purge function, improve the working conditions of the burner and prolong the service life .

Use waveform furnace ,strengthens the disturbance of the smoke and increases the radiation heat transfer area ;

Adopt waveform furnace enhance heat transfer and promote the combustion of fuel in the furnace.

The heating surface is arranged symmetrically with solid structural strength and reasonable water circulation .

Industrial steam boiler have Large steam room and high quality steam.

Aboved horizontal structure steam boiler ,with adequate heating area, full heat transfer ,stable operating under load revise ,high combustion efficiency.

Gas/Oil Fried Steam Boiler Parameter

Model			WNS0.5	WNS1	WNS1.5	WNS2	WNS3	WNS4	WNS6	WNS8	WNS10
Project		Unit	WNS0.5	WNS1	WNS1.5	WNS2	WNS3	WNS4	WNS6	WNS8	WNS10
Rated evaporation		t/h	0.5	1	1.5	2	3	4	6	8	10
Rated working pressure		MPa	0.7	1	1	1	1	1.25	1.25	1.25	1.25
Staturated steam temperature		℃	170	184	184	184	184	193	193	193	193
Fuel consumption	Light diesel oil	kg/h	35	70	105	140	210	260	390	520	650
	Natural gas	Nm³/h	40	80	120	160	240	280	420	560	700
	LPG	Nm³/h	15	30	45	60	90	120	180	240	300
	City gas	Nm³/h	85	170	250	340	510	680	1020	1360	1700
a Main steam valve diameter		DN	40	65	65	80	80	100	125	150	150
b Safety valve diameter		DN	40	50	50	40×2	40×2	50×2	65×2	80×2	80×2
c Inlet diamater		DN	25	25	40	40	40	50	50	65	65
d Blowoff Valve diameter		DN	40	40	40	50	50	50	50	50	50
e Chimney diameter		DN	250	300	350	400	450	500	650	800	900
Overall size	L	mm	3800	4500	4700	4800	5500	6310	7200	7780	8330
	L1	mm	3100	3200	3600	3800	4500	5230	5960	6320	7040
	W	mm	1900	2300	2800	2900	2900	2950	3190	3440	3475
	W1	mm	1000	1880	1900	2150	2350	2350	2650	2980	3040
	H	mm	2100	2680	2950	3250	3880	3120	3610	3700	3800
	H1	mm	1800	1980	2070	2250	2450	2530	2850	2920	3050
Weight		T	3.3	4.6	5.5	6.3	10.6	13.8	18.5	20	23

Gas/Oil Fried Steam Boiler Parameter

Model			WNS8	WNS10	WNS12	WNS15	WNS20
Item		unit	WNS8	WNS10	WNS12	WNS15	WNS20
Rated evaporation		T/h	8	10	12	15	20
Rated working pressure		Mpa	1.25	1.25	1.25	1.25	1.25
Staturated steam temperature		℃	193	193	193	193	193
Weight		T	18.4	23	30.1	36.5	49.5
fuelconsumption	diesel oil	Kg/h	480	600	720	900	1200
	natural gas	Nm3/h	614	766	921	1140	1525
	LPG	L/h	957	1194	1435	1777	2377
a main steam valve		mm	150	150	200	200	250
b safety valve		mm	65×2	80×2	80×2	80×2	80×2
c water inlet		mm	50	50	65	65	80
d drain valve		mm	50	50	65	65	65
e chimney		mm	650	750	1000	1000	1250
Overall size	L	mm	7950	8600	8740	10730	11250
	W	mm	3200	3400	7450	8110	8360
	H	mm	4100	4300	3475	3850	4395
Transportation size	L1	mm	6700	7350	2700	2950	3250
	W1	mm	2600	2800	4050	4210	4650
	H1	mm	3070	3470	3280	3510	3820

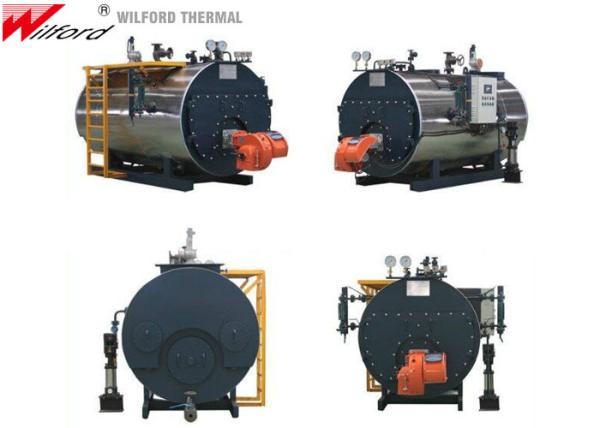

Gas/Oil Fried Steam Boiler picture

Gas/Oil Fried Steam Boiler Project case diagram

Gas/Oil Fried Steam Boiler Factory

Gas/Oil Fried Steam Boiler After-sale service

For each user, we have detailed understanding and analysis of their different production environment and the shortage of the products, so that to provide reasonable technical solution and timely after-sales service.We attach great importance to the effective operation of boiler product system to provide customers with solutions to problems, at the same time to sent experienced engineer to on-site guidance.The company has accumulated rich experience in the scene to deal with problems,which provides strong technical support and perfect after-sales service to the equipment we manufactured.Only users success is our success !
