Textile Small Heat Loss 10T/H Gas Fired Steam Boiler

Product Categories

Zhangjiagang Wilford Thermal Co.,Ltd.

Contact Now

Name: Textile Small Heat Loss 10TH Gas Fired Steam Boiler
Brand: WILFORD
Price: 1 USD

Add to Cart

Horizontal Natural Gas Fried Steam Boiler For Textile Industry

Gas Fried Steam Boiler introduction

1 . The large steam room and high quality steam.

2 . The horizontal structure has adequate heating, heat transfer is full ,load changes operating is stable in boiler, high combustion efficiency.

3 . The boiler is very efficient in combustion , save fuel and lower the operation cost.

4 . Automatically operation, PLC is controllor.

5 . The unique design of the combustion chamber.

6 . After preseting, the purge functions to improve the working conditions of combustion and longevity.

Gas Fried Steam Boiler Parameter

Model			WNS0.5	WNS1	WNS1.5	WNS2	WNS3	WNS4	WNS6	WNS8	WNS10
Project		Unit	WNS0.5	WNS1	WNS1.5	WNS2	WNS3	WNS4	WNS6	WNS8	WNS10
Rated evaporation		t/h	0.5	1	1.5	2	3	4	6	8	10
Rated working pressure		MPa	0.7	1	1	1	1	1.25	1.25	1.25	1.25
Staturated steam temperature		℃	170	184	184	184	184	193	193	193	193
Fuel consumption	Light diesel oil	kg/h	35	70	105	140	210	260	390	520	650
	Natural gas	Nm³/h	40	80	120	160	240	280	420	560	700
	LPG	Nm³/h	15	30	45	60	90	120	180	240	300
	City gas	Nm³/h	85	170	250	340	510	680	1020	1360	1700
a Main steam valve diameter		DN	40	65	65	80	80	100	125	150	150
b Safety valve diameter		DN	40	50	50	40×2	40×2	50×2	65×2	80×2	80×2
c Inlet diamater		DN	25	25	40	40	40	50	50	65	65
d Blowoff Valve diameter		DN	40	40	40	50	50	50	50	50	50
e Chimney diameter		DN	250	300	350	400	450	500	650	800	900
Overall size	L	mm	3800	4500	4700	4800	5500	6310	7200	7780	8330
	L1	mm	3100	3200	3600	3800	4500	5230	5960	6320	7040
	W	mm	1900	2300	2800	2900	2900	2950	3190	3440	3475
	W1	mm	1000	1880	1900	2150	2350	2350	2650	2980	3040
	H	mm	2100	2680	2950	3250	3880	3120	3610	3700	3800
	H1	mm	1800	1980	2070	2250	2450	2530	2850	2920	3050
Weight		T	3.3	4.6	5.5	6.3	10.6	13.8	18.5	20	23

Gas Fried Steam Boiler Advantage

1 . Large combustion chamber design

2 . Horizontal structure

3 . Full heat transfer

4 . High thermal efficiency

5 . Clean, no pollution

6 . Safe and reliable

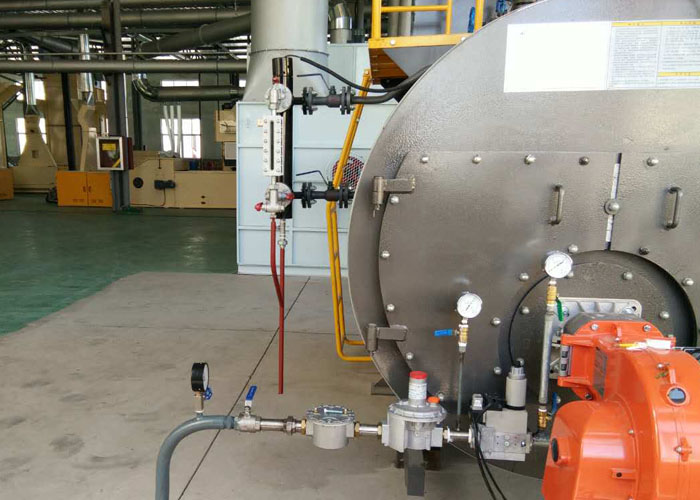

Gas Fried Steam Boiler picture

Project case diagram
