Food Industry Vertical 0.7Mpa 500KG Gas Fired Steam Boiler

Product Categories

Zhangjiagang Wilford Thermal Co.,Ltd.

Contact Now

Name: Food Industry Vertical 07Mpa 500KG Gas Fired Steam Boiler
Brand: WILFORD
Price: 1 USD

Add to Cart

Industrial Vertical 500KG Gas Fired Steam Boiler

Gas Fired Steam Boiler introduction

★ Gas / Diesel Oil Fuel Industrial Steam Boiler adopts Imported combustion engine with high efficiency and low emission.

★ Equipped with Wilford controller, simple operation, automatic operation, effective control of boiler operation.

★ Use wilford controller,simple operation,automatic operation.

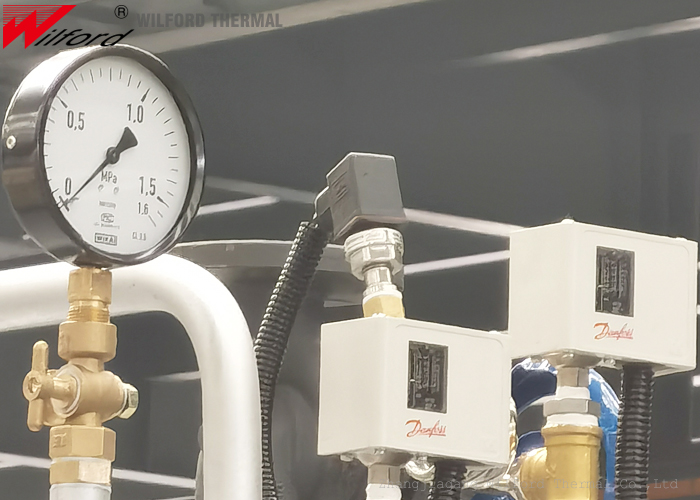

★ Adopt high-precision pressure control switch and full-open safety valve to ensure safe operation of the boiler.

★ High quality water pump and high pressure stable feed water to ensure boiler operation.

★ what's more,Equipped with multi-function water level gauge, the user can understand the current water level directly.

Gas Fired Steam Boiler Parameter

Type			LSS0.5	LSS1	LSS1.5	LSS2
Project		Unit	LSS0.5	LSS1	LSS1.5	LSS2
Rated evaporation		t/h	0.5	1	1.5	2
Rated working pressure		MPa	0.7/1.0	1.0/1.25	1.0/1.25	1.0/1.25
Staturated steam temperature		℃	170/193	184/193	184/193	184/193
Fuel consumption	Light diesel oil	kg/h	35	70	105	140
	Natural gas	Nm³/h	40	80	120	160
	LPG	Nm³/h	15	30	45	60
	City gas	Nm³/h	85	170	265	340
a Main steam valve diameter		DN	40	50	65	80
b Safety valve diameter		DN	40	50	50	40×2
c Inlet diamater		DN	25	25	32	40
d Blowoff Valve diameter		DN	25	40	40	40
e Chimney diameter		DN	250	350	400	500
Overall size	L	mm	1830	1980	2045	2550
	W	mm	1780	1980	2220	2780
	H	mm	2650	3080	3380	3620
	H1	mm	2100	2300	2650	2880
	φDiameter	mm	1180	1380	1680	1980
Weight		T	1.8/2.2	2.3/2.8	3.3/4	4.3/5.2

Gas Fired Steam Boiler Advantage

High lift water pump,high pressure stable water supply.High-precision pressure control switch.

Flexible working methods,Vertical structure,save room space and easily installation.

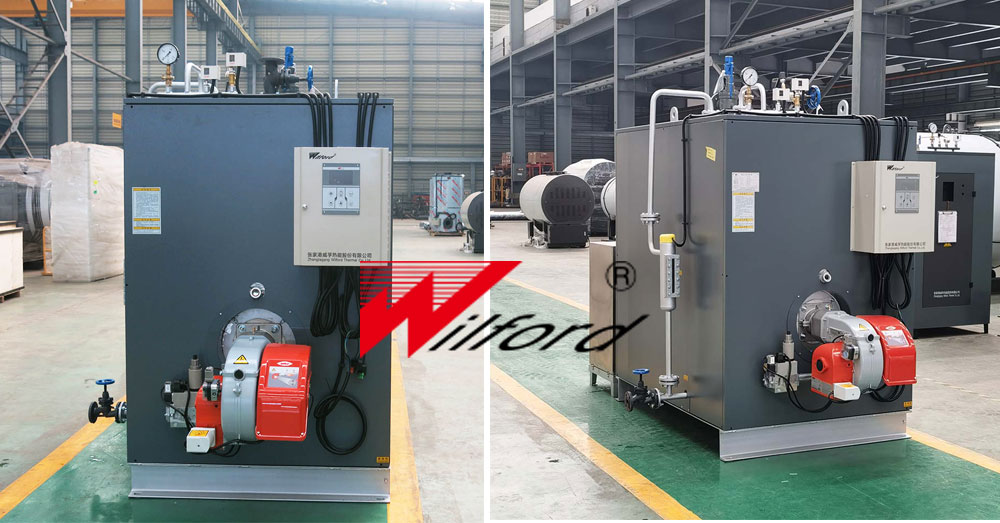

Gas Fired Steam Boiler detail picture

Application Scope

Food machinery industry: tofu machine, steam box, sterilization pot, packing machine, coating equipment, sealing machine, such as supporting the use of equipment.

Biological Chemical Industry: fermentation tank, reaction kettle, sandwich pot, mixer, emulsifying machine supporting the use of equipment.Washing ironing industry: dry washer, dryer and washing machine, dryer, ironing machine, electric iron, and other ancillary equipment.

Other industries: oil field, car) steam cleaning industry, (hotel, school, dormitory, batch plant) , (Bridges, railways) concrete curing, leisure (salon), sauna bath, heat exchange equipment.

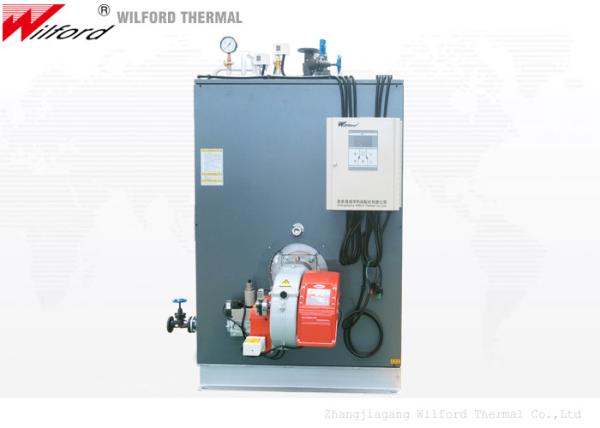

Product picture

After-sales service

A big team in responsible for the after-sale service and is always at customers’ service.

Our warranty is 12 months from the date when the Machine start using in cutomer's factory.
