Low Pressure 200kg/H 0.7Mpa Vertical Water Tube Gas Fired Steam Boiler

Product Categories

Gas Oil Boiler [64]
Gas Fired Steam Boiler [66]
Oil Fired Steam Boiler [56]
Industrial Electric Steam Boiler [66]
Biomass Fired Steam Boiler [36]
Coal Fired Steam Boiler [19]
Industrial Electric Hot Water Boiler [40]
Gas Fired Hot Water Boiler [26]
Oil Fired Hot Water Boiler [18]
Biomass Hot Water Boiler [20]
Coal Hot Water Boiler [24]
Thermal Oil Heater [76]
Skid Mounted Boiler [20]
Gas Fired Steam Generator [24]
Oil Fired Steam Generator [22]
Industrial Electric Steam Generator [48]

Zhangjiagang Wilford Thermal Co.,Ltd.

Contact Now

Low Pressure 200kg/H 0.7Mpa Vertical Water Tube Gas Fired Steam Boiler

Ask Lasest Price
Brand Name :	WILFORD
Model Number :	LSS
Certification :	CE,ASME
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	25 stand/stands per Month
Delivery Time :	15-20 working days

Add to Cart

Product Details
Company Profile

Low Pressure 200kg/H 0.7Mpa Vertical Water Tube Gas Fired Steam Boiler

Small Vertical Water Tube Industrial Natural Gas / LPG Fired Steam Boiler

Industrial Steam Boiler introduction

Vertical Water Tube Industrial Steam Boiler Adopts German high quality pressure gauge,Imported burner .Small heat loss and high thermal efficiency.

Built-in multi steam and water separation technology,quality steam .

With multiple chain protection for water level,steam pressure,overheating ,which is safe and reliable.

Fully skid-mounted ,centralized steam supply, could realize single independent or multiple units centralized control, exempted of installtion and design.

Multiple chain protection,Full combustion, low energy consumption,Safety and energy saving.

The furnace structure has good heat absorption effect, the combustion efficiency is 95%.

Industrial Steam Boiler Parameter

Model			LSS0.05-0.7-Y.Q	LSS0.1-0.7-Y.Q	LSS0.125-0.7-Y.Q	LSS0.2-0.7-Y.Q	LSS0.25-0.7-Y.Q	LSS0.3-0.7-Y.Q	LSS0.5-0.7-Y.Q
Project		Unit	LSS0.05-0.7-Y.Q	LSS0.1-0.7-Y.Q	LSS0.125-0.7-Y.Q	LSS0.2-0.7-Y.Q	LSS0.25-0.7-Y.Q	LSS0.3-0.7-Y.Q	LSS0.5-0.7-Y.Q
Rated evaporation		Kg/h	50	100	125	200	250	300	500
Rated working pressure		MPa	0.7	0.7	0.7	0.7	0.7	0.7	0.7
Staturated steam temperature		℃	170	170	170	170	170	170	170
Fuel consumption	Light diesel oil	kg/h	3.5	6.8	8.5	14	16	20	33
	Natural gas	Nm³/h	3.5	7	8.75	15	19	22	36.5
	LPG	Nm³/h	1.5	3	3.8	6	7.5	9	14.5
	City gas	Nm³/h	8.5	18	22.5	34	43	52	88
Water capacity		L	29	49.3	49.6	49.5	49.5	49.5	49.6
a Main steam valve diameter		DN	15	25	25	32	32	32	50
b Safety valve diameter		DN	20	20	20	25	25	25	40
c Inlet diamater		DN	15	15	15	15	15	15	15
d Blowoff Valve diameter		DN	20	20	20	25	25	25	25
Chimney diameter		DN	80	125	125	150	150	150	250
Overall size	L	mm	820	880	900	1400	1500	1500	1800
	W	mm	890	1100	1150	1000	1100	1200	1300
	H	mm	1600	1800	1900	1000	2200	2200	2350
	φDiameter	mm	600	650	650
Weight		kg	180	220	240	850	1150	1200	1680

Industrial Steam Boiler

Washing ironing industry: dry washer, dryer and washing machine, dryer, ironing machine, electric iron, and other ancillary equipment.

Food machinery industry: tofu machine, steam box, sterilization pot, packing machine, coating equipment, sealing machine, such as supporting the use of equipment.

Medical industry: disinfection, heating, canteen, equipment heating, equipment purification, cooking medicinal materials, medicinal materials extraction, hospital dry cleaning machine, hospital laundry room disinfection.

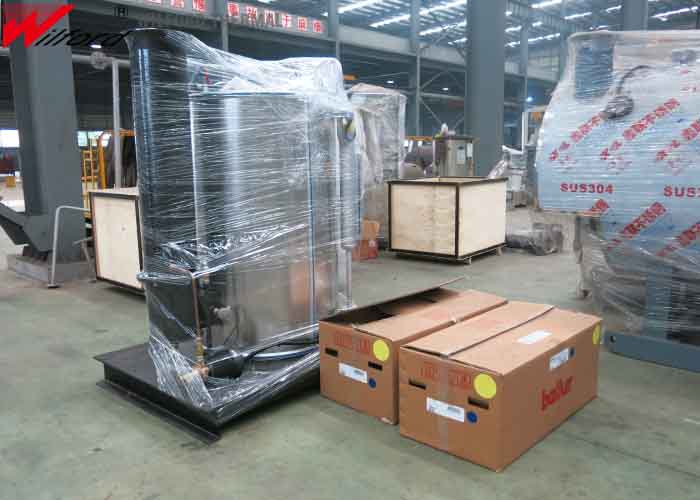

Industrial Steam Boiler Package and Shipping

Industrial Steam Boiler FAQ

Q : Are you a factory or a trading company?
A : We are a 20 years old industrial boiler factory, specializing in gas oil diesel electric fired boilers.

Q : What is the Warranty for the boilers?

A : Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new parts for free.

Q : How long should we wait for delivery?

A : Usually it will take about 35-45 days for pressured boilers, If you need to change the voltage or pressure, it need more time.

Q : What about your payment term?
A : Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other payment way.
